 Heat Bank Thermal Store
System Heat Bank Thermal Store
2000 Xcel Cylinder 14 Plate
Heat Exchanger (30 ltr/min) 40mm Foam
Insulation Directly
Pumped Heating Circuit Immersion
Heater Status Lights All fitted
controls are wired
Thermostatic Blending Valve 1" Full Low
Water Level Cut-Out Central
Overheat Protection Central
Heating Timer & Room Stat Cased

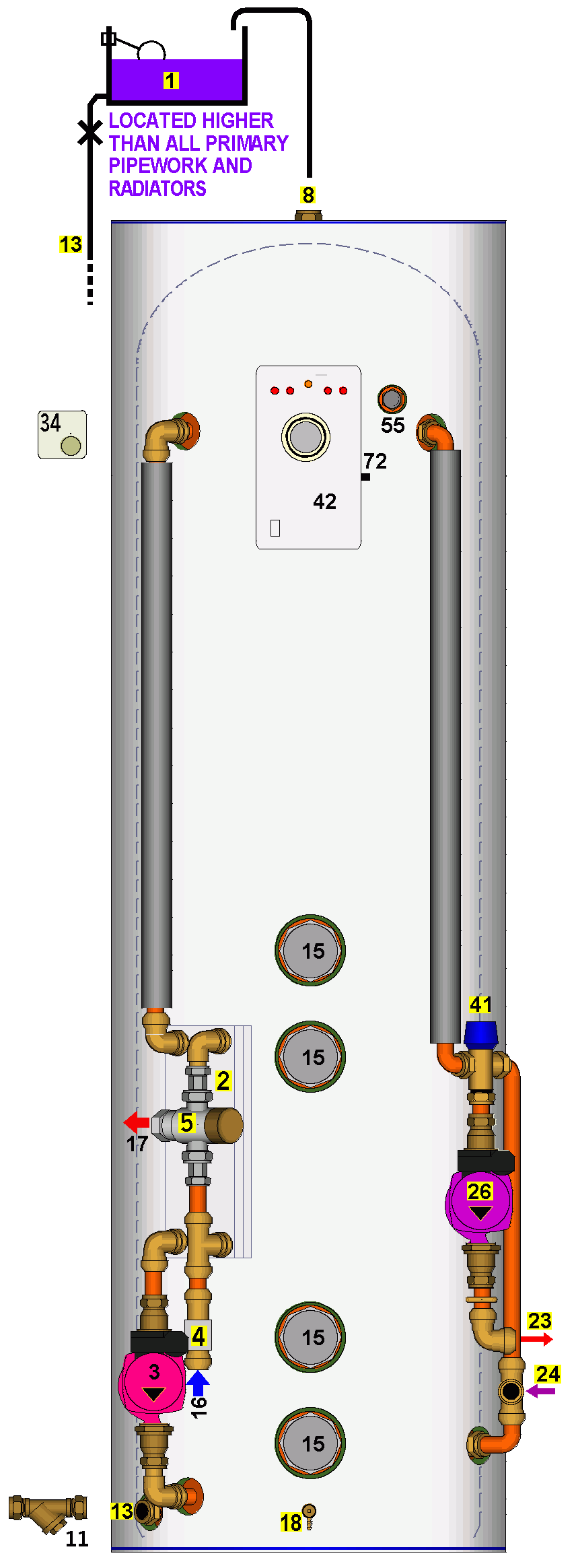

2 Plate Heat Exchanger 3 Heat Exchanger Pump 4 Flow Switch 5 Thermostatic Blending Valve, Mixcall III 8 Vent 9 Store Filling Point 11 Y-Pattern Strainer (supplied loose) 13 Cold Feed / Expansion 15 Economy Immersion Heater 3kW Low Noise with Stat 16 Cold Mains In, 22mm 17 Hot Mains Out, 22mm 18 Drain Cock 23 Flow to Heating Circuit 24 Return from Heating Circuit 26 Primary Pump UPS 15/50 39 White Coated Steel Casing 41 Primary Blending Valve 42 Wiring Centre with Central Heating Clock 55 Water Level Switch 72 Manual Reset Overheat Thermostat |
| ||||||||||||||||||||
|
| |||||||||||||||||||||
