 Heat Bank Thermal Store System
Heat
Bank Thermal Store 2000 Stowaway advanced F+E Pandora Air System
28
Plate Heat Exchanger (45+ ltr/min) 40mm Foam
Insulation Directly Pumped Heating Circuit All fitted controls
are wired Manual Fill - No Overflow Thermostatic
Blending Valve, Heatguard 22mm Full Low Water
Level Cut-Out Central Overheat Protection Additional 6m
Finned Solar Coil Boost Heater Timer
Central Heating Timer & Room Stat Fitted Temperature
Gauge Overheat Discharge (Power Required) Cased

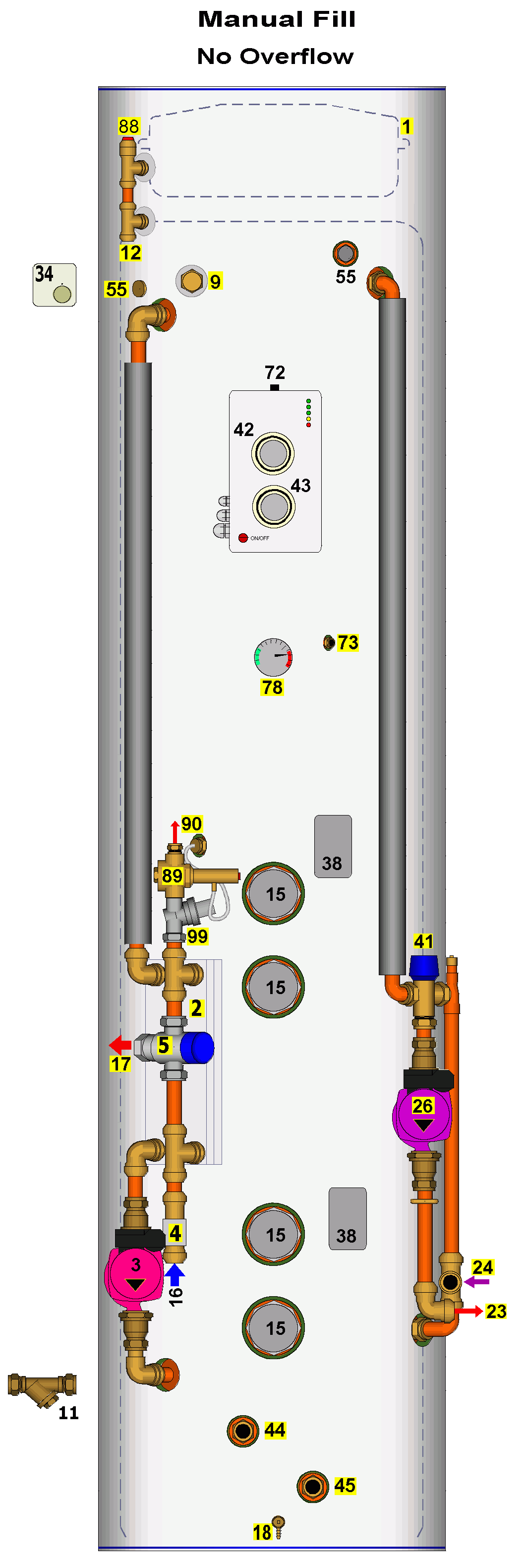

2 Plate Heat Exchanger 3 Heat Exchanger Pump 4 Flow Switch 5 Thermostatic Blending Valve, RWC Heatguard 22mm 9 Store Filling Point 11 Y-Pattern Strainer (supplied loose) 12 Anti-Pressure Valve 15 Economy Immersion Heater 3kW Low Noise with Stat 16 Cold Mains In, 22mm 17 Hot Mains Out, 22mm 18 Drain Cock 23 Flow to Heating Circuit 24 Return from Heating Circuit 26 Primary Pump UPS 15/50 38 Cylinder Thermostat (with Immersion Pocket) 39 White Coated Steel Casing 41 Primary Blending Valve 42 Wiring Centre with Central Heating Clock 43 Boost Heater Timer 44 Flow to Lower Coil, 22mm 45 Return from Lower Coil, 22mm 55 Blanked Boss for Optional Water Level Switch 55 Water Level Switch 72 Manual Reset Overheat Thermostat 73 Sensor Pocket 78 Temperature Gauge 88 Anti-Vacuum Valve 3/4" 89 Overheat Discharge Valve 90 Overheat Discharge, 15mm 99 Pressure Reducing (Balancing) Valve |
| |||||||||||||||
|
| ||||||||||||||||
