Specification 4713-1

DEDICATED PRESSURE SYSTEMS LTD.

The Institute of Plumbing Telephone 01372 803 675
Fax 01372 803 678
Email dps@heatweb.com
Internet http://www.heatweb.com

9-19 Manor Green Road, Epsom, Surrey KT19 8RA

Specification 4713-1
13/05/02

Heat Bank Thermal Store System
Everest combination unit
28 Plate Heat Exchanger (45+ ltr/min)
Indirect
40mm Foam Insulation
High duty primary coil
Fitted Cylinder Thermostat (Only)
Double Cylinder Stat Arrangement
All fitted controls are wired
Thermostatic Blending Valve 1"
Backup Immersion Heater
Cased

Unit Code	CEC-300-4713-1	CEC-450-4713-1
Capacity [litres]	300	450
Base Diameter [mm]	500	600
Overall Diameter [mm]	580	680
Height [mm]	2000	2000

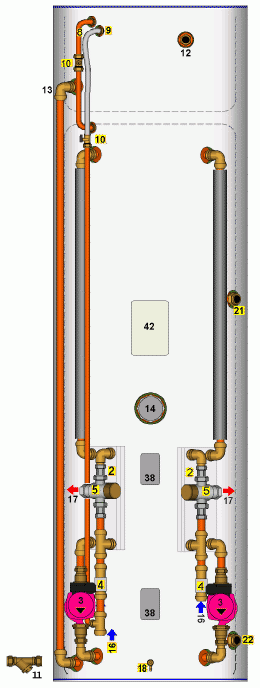

2   Plate Heat Exchanger L18-28
3   Heat Exchanger Pump
4   Flow Switch
5   Thermostatic Blending Valve, Mixcall III
8   Filling Vent
9   Feed to Ball Valve
10  Isolating Valve
11  Y-Pattern Strainer (supplied loose)
12  Overflow
13  Cold Feed / Expansion
14  Immersion Heater 3kW Incaloy with Stat
16  Cold Mains In, 22mm
17  Hot Mains Out, 22mm
18  Drain Cock
21  Flow to Primary Coil
22  Return from Primary Coil
38  Cylinder Thermostat (with Immersion Pocket)
42  Wiring Centre

High Output Everest Heat Bank Thermal Store
