 Heat Bank Thermal Store System
Stowaway advanced F+E Pandora Air System
14
Plate Heat Exchanger (30 ltr/min) Indirect
40mm
Foam Insulation Fitted Cylinder
Thermostat (Only) Manual Fill - No
Overflow Thermostatic Blending Valve, Heatguard 22mm Backup Immersion
Heater Cased Internal Inhibitor

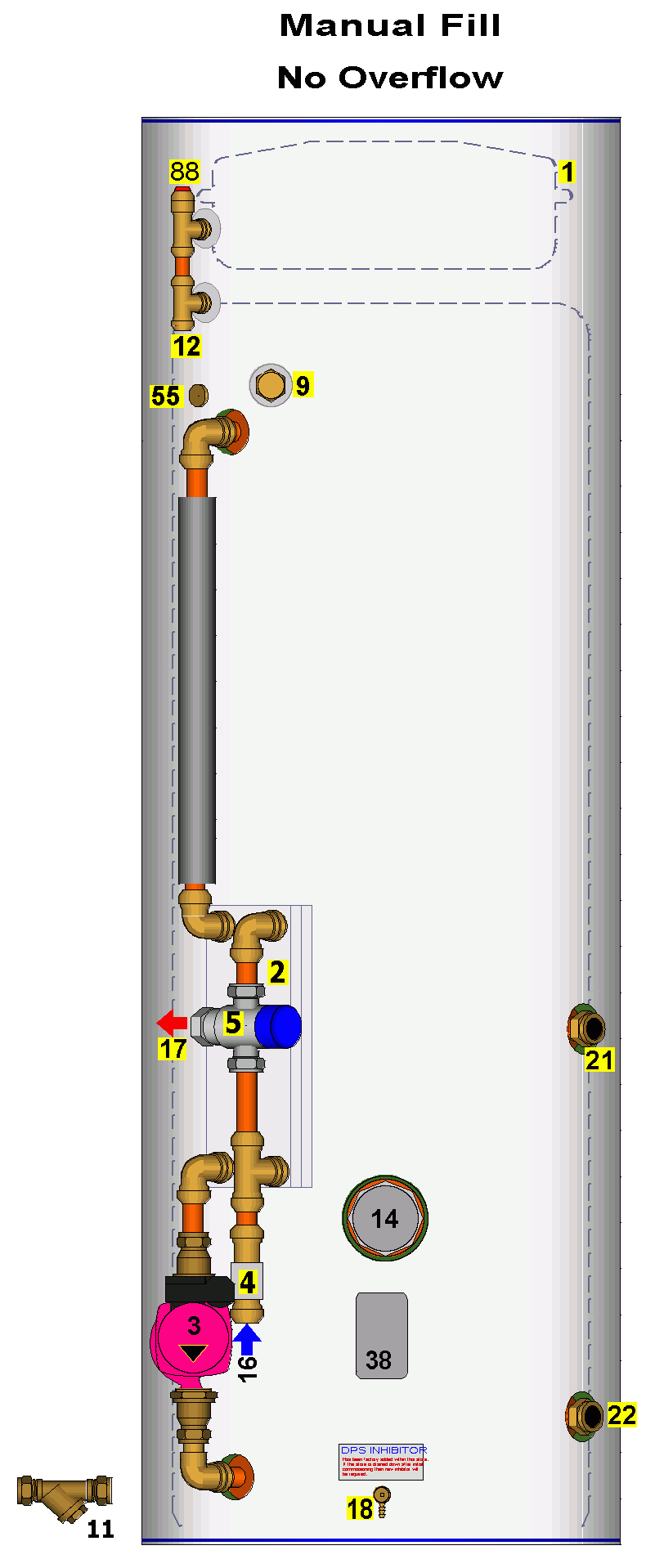

2 Plate Heat Exchanger 3 Heat Exchanger Pump 4 Flow Switch 5 Thermostatic Blending Valve, RWC Heatguard 22mm 9 Store Filling Point 11 Y-Pattern Strainer (supplied loose) 12 Anti-Pressure Valve 14 Immersion Heater 3kW Incaloy with Stat 16 Cold Mains In, 22mm 17 Hot Mains Out, 22mm 18 Drain Cock 21 Flow to Primary Coil 22 Return from Primary Coil 38 Cylinder Thermostat (with Immersion Pocket) 39 White Coated Steel Casing 55 Blanked Level Switch Boss 88 Anti-Vacuum Valve 3/4"
Corrosion Inhibitor is supplied already added into the store after factory testing of the unit. Should the unit be drained down after initial filling, fresh inhibitor will be required at a ratio of 1 litre to 100 litres of store capacity |
| ||||||||||||||||||||||||||||||
|
| |||||||||||||||||||||||||||||||
