 Heat Bank Thermal Store
System Stowaway
advanced F+E Pandora
Air System 14 Plate
Heat Exchanger (30 ltr/min) Indirect
40mm Foam Insulation High duty
primary coil Y-Plan
primary controls Fitted
programmer Fitted
Primary Pump, 5m head All fitted
controls are wired Manual
Fill - No Overflow
Thermostatic Blending Valve, Heatguard 22mm Backup
Immersion Heater Cased
Internal Inhibitor

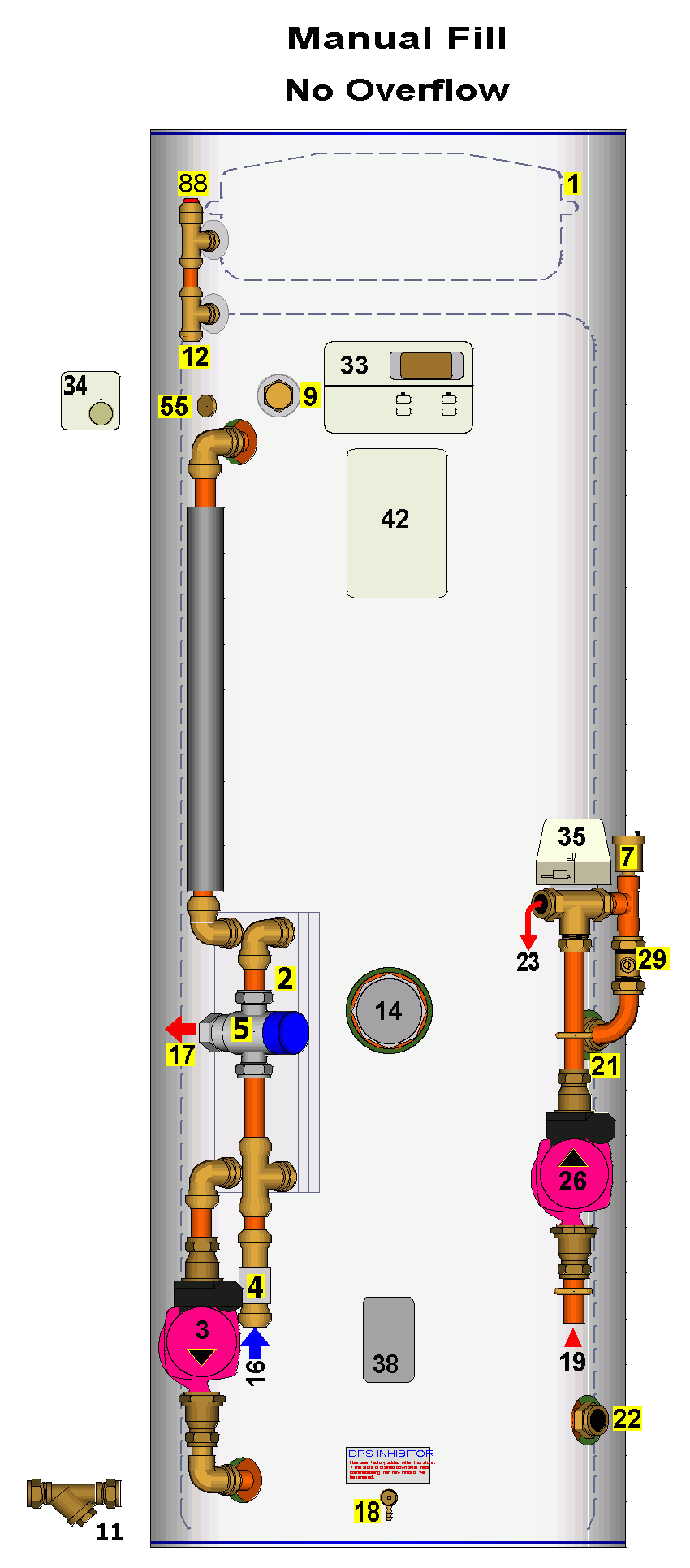

2 Plate Heat Exchanger 3 Heat Exchanger Pump 4 Flow Switch 5 Thermostatic Blending Valve, RWC Heatguard 22mm 7 Automatic Air Vent 9 Store Filling Point 11 Y-Pattern Strainer (supplied loose) 12 Anti-Pressure Valve 14 Immersion Heater 3kW Incaloy with Stat 16 Cold Mains In, 22mm 17 Hot Mains Out, 22mm 18 Drain Cock 19 Flow From Boiler 21 Flow to Primary Coil 22 Return from Primary Coil 23 Flow to Heating Circuit 26 Primary Pump UPS 15/50 29 Primary Coil Balancing Valve 33 Programmer Danfoss CP715 35 Three Port Mid Position Valve 38 Cylinder Thermostat (with Immersion Pocket) 39 White Coated Steel Casing 42 Wiring Centre 55 Blanked Boss for Optional Water Level Switch 88 Anti-Vacuum Valve 3/4" Corrosion Inhibitor is supplied already added into the store after factory testing of the unit. Should the unit be drained down after initial filling, fresh inhibitor will be required at a ratio of 1 litre to 100 litres of store capacity |
| ||||||||||||||||||||||||||||||
|
| |||||||||||||||||||||||||||||||
