 Heat Bank Thermal Store
System
Stowaway
advanced F+E
Pandora
Air System
14 Plate
Heat Exchanger (30 ltr/min)
Electrically heated
40mm Foam
Insulation
Manual
Fill - No Overflow
Thermostatic Blending Valve, Heatguard 22mm
Integral
Immersion Dry-Firing protection
Cased
Internal Inhibitor
|
Unit Code |
CPC-130-ELC |
CPC-150-ELC |
CPC-180-ELC |
CPC-210-ELC |
CPC-250-ELC |
|
Capacity [litres] |
130 |
150 |
180 |
210 |
250 |
|
Base Diameter [mm] |
450 |
450 |
450 |
450 |
450 |
|
Overall Diameter [mm] |
530 |
530 |
530 |
530 |
530 |
|
Height [mm] |
1200 |
1300 |
1550 |
1750 |
2000 |

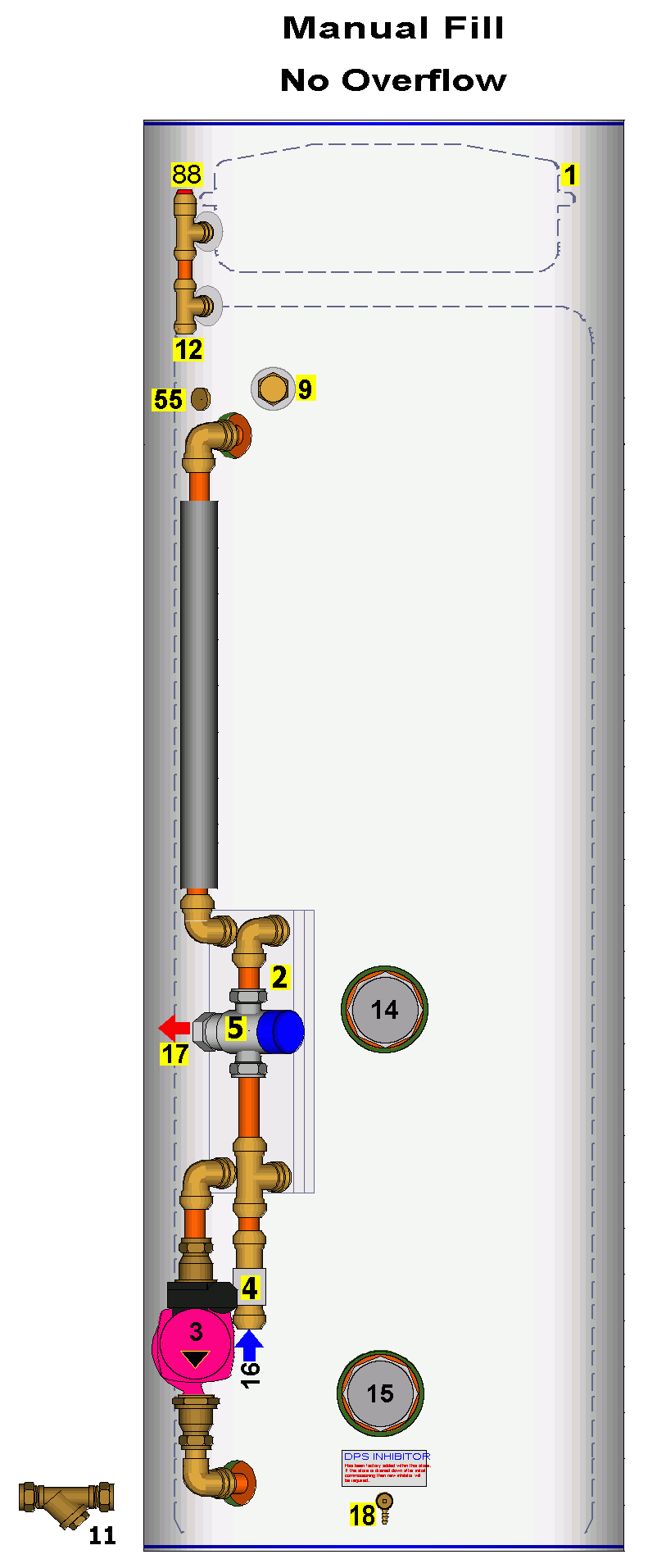

1 Internal Expansion
Vessel
2 Plate Heat
Exchanger
3 Heat Exchanger
Pump
4 Flow Switch
5 Thermostatic
Blending Valve, RWC Heatguard 22mm
9 Store Filling
Point (Blanked off with cap) 22mm
11 Y-Pattern Strainer
(supplied loose)
12 Anti-Pressure
Valve
14 Boost Immersion Heater 3kW Incaloy with
Stat
15 Immersion Heater 3kW Low Noise, 2 Stats,
DFP
16 Cold Mains In, 22mm
17 Hot Mains Out,
22mm
18 Drain Cock
39 White Coated Steel
Casing
55 Blanked Boss for Optional Water Level
Switch
88 Anti-Vacuum Valve 3/4"
Corrosion Inhibitor is supplied already added into the store
after factory testing of the unit. Should the unit be drained
down after initial filling fresh inhibitor will be required at a ratio of
1litre to 100 litres of store capacity.
|

Cased Electric Pandora Heat Bank Thermal Store
|
