Specification 5670-7
DPS Pandora

02/05/03

Heat Bank Thermal Store System
Stowaway advanced F+E
Pandora Air System
14 Plate Heat Exchanger (30 ltr/min)
Electrically heated
Immersion Heater Controller
40mm Foam Insulation
All fitted controls are wired
Manual Fill - No Overflow
Thermostatic Blending Valve, Heatguard 22mm
Integral Immersion Dry-Firing protection
Cased
Internal Inhibitor



Unit Code

 CPC-130-ELC-IHC CPC-150-ELC-IHC CPC-180-ELC-IHC CPC-210-ELC-IHC CPC-250-ELC-IHC

Capacity [litres]

 130 150 180 210 250

Base Diameter [mm]

 450 450 450 450 450

Overall Diameter [mm]

 530 530 530 530 530

Height [mm]

 1200 1300 1550 1750 2000

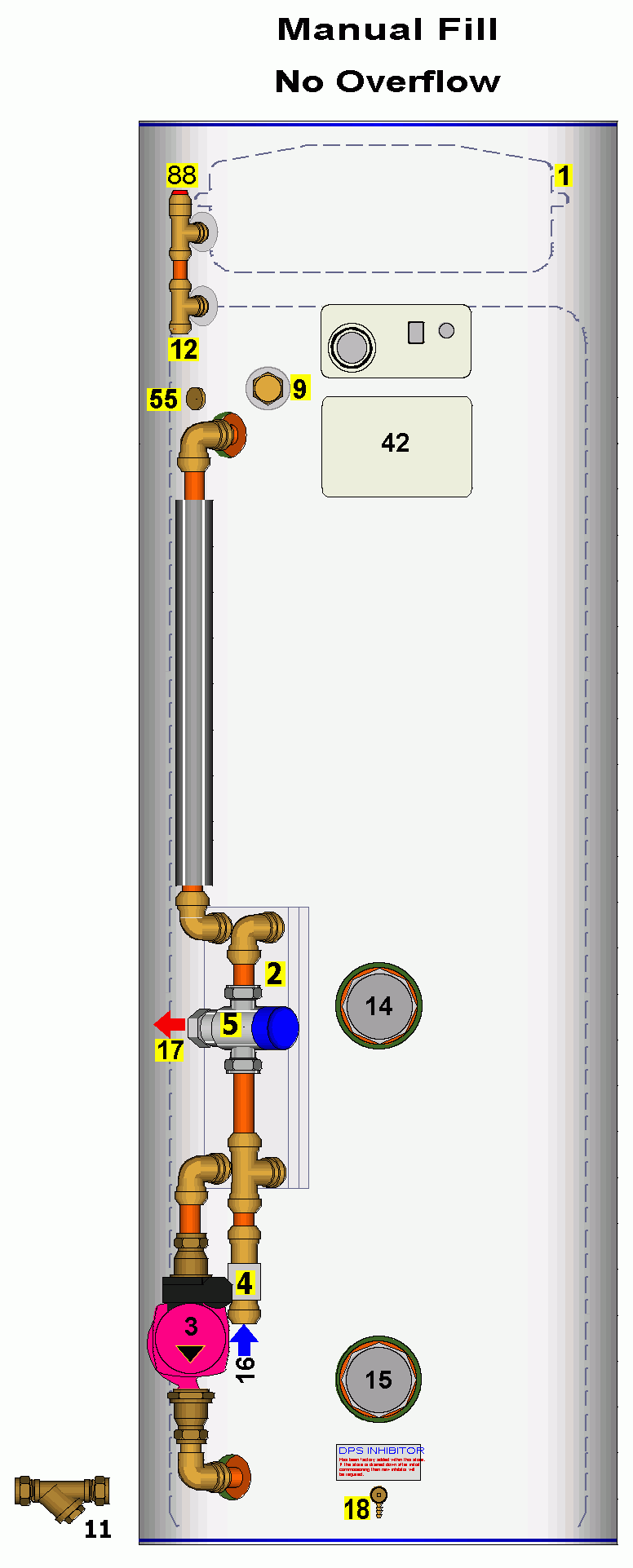

1   Internal Expansion Vessel
2   Plate Heat Exchanger
3   Heat Exchanger Pump
4   Flow Switch
5   Thermostatic Blending Valve, RWC Heatguard 22mm
9   Store Filling Point
11  Y-Pattern Strainer (supplied loose)
12  Anti-Pressure Valve
14  Boost Immersion Heater 3kW Incaloy with Stat
15  Immersion Heater 3kW Low Noise, 2 Stats, DFP
16  Cold Mains In, 22mm
17  Hot Mains Out, 22mm
18  Drain Cock
39  White Coated Steel Casing
42  Wiring Centre
43  Grasslin QE7 Immersion Heater Controller
55  Blanked Boss for Optional Water Level Switch
88  Anti-Vacuum Valve 3/4"

Corrosion Inhibitor is supplied already added into the store after factory testing of the unit.  Should the unit be drained down after initial filling, fresh inhibitor will be required at a ratio of 1 litre to 100 litres of store capacity


Pandora Electric Heat Bank Thermal Store with Controller
